Eaton BR Thermal Magnetic Circuit Breaker

Eaton

SKU: 196304

Product Code: BQC2302120

Eaton BR thermal magnetic circuit breaker,Type BQC 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,(2) Single-Pole 20 A, (1) Two-Pole 30 A,10 kAIC,Four-pole,120/240V,BQC,Common breaker trip,#14-4 AWG Cu/Al,BQC

GENERAL SPECIFICATIONS

PRODUCT LENGTH/DEPTH: 3 in
PRODUCT HEIGHT: 3 in
PRODUCT WIDTH: 2 in
PRODUCT WEIGHT: .9 lb
COMPLIANCES: Federal Specifications Classification W-C375
CERTIFICATIONS: UL 489
CATALOG NOTES: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.

PRODUCT SPECIFICATIONS

SPECIAL FEATURES: Includes rejection tab feature
INTERRUPT RATING: 10 kAIC
TYPE: Type BQC 1-Inch CTL plug-on circuit breaker
WIRE SIZE: #14-4 AWG Cu/Al
CIRCUIT BREAKER TYPE: BQ
USED WITH: Type BR Loadcenters
MAIN CIRCUIT BREAKER: BQC
MOUNTING METHOD: Plug-on
VOLTAGE RATING: 120/240 V
TRIP TYPE: Common breaker trip
NUMBER OF POLES: Four-pole

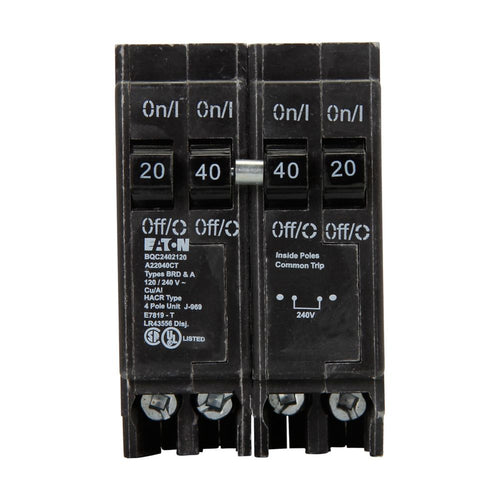

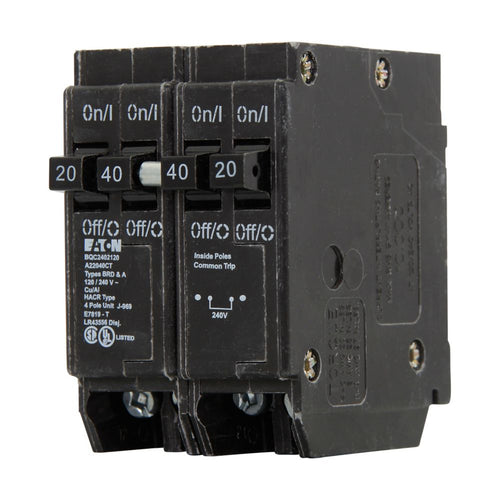

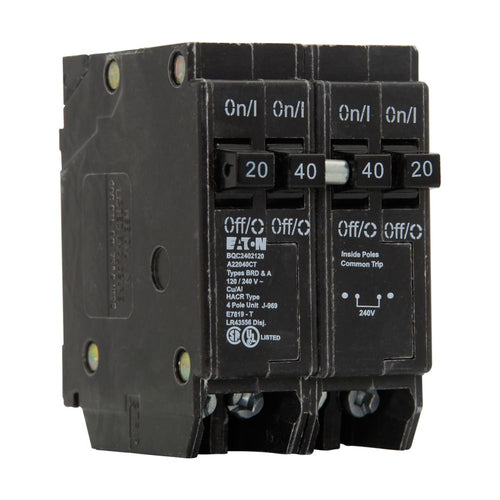

Product Code: BQC2402120

Eaton BR thermal magnetic circuit breaker,Type BQC 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,(2) Single-Pole 20 A, (1) Two-Pole 40 A,10 kAIC,Four-pole,120/240V,BQC,Common breaker trip,#14-4 AWG Cu/Al,BQC

GENERAL SPECIFICATIONS

PRODUCT LENGTH/DEPTH: 3 in
PRODUCT HEIGHT: 3 in
PRODUCT WIDTH: 2 in
PRODUCT WEIGHT: .9 lb
COMPLIANCES: Federal Specifications Classification W-C375
CERTIFICATIONS: UL 489
CATALOG NOTES: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.

PRODUCT SPECIFICATIONS

SPECIAL FEATURES: Includes rejection tab feature
INTERRUPT RATING: 10 kAIC
TYPE: Type BQC 1-Inch CTL plug-on circuit breaker
WIRE SIZE: #14-4 AWG Cu/Al
CIRCUIT BREAKER TYPE: BQ
USED WITH: Type BR Loadcenters
MAIN CIRCUIT BREAKER: BQC
MOUNTING METHOD: Plug-on
VOLTAGE RATING: 120/240 V
TRIP TYPE: Common breaker trip
NUMBER OF POLES: Four-pole



Product Code: BQC230240

Eaton BR thermal magnetic circuit breaker,Type BQC 1-Inch CTL plug-on circuit breaker,Includes rejection tab feature,(1) Two-Pole 30 A, (1) Two-Pole 40 A,10 kAIC,Four-pole,120/240V,BQC,Common breaker trip,#14-4 AWG Cu/Al,BQC

GENERAL SPECIFICATIONS


PRODUCT LENGTH/DEPTH: 3 in
PRODUCT HEIGHT: 3 in
PRODUCT WIDTH: 2 in
PRODUCT WEIGHT: .9 lb
COMPLIANCES: Federal Specifications Classification W-C375
CERTIFICATIONS: UL 489
CATALOG NOTES:All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.


PRODUCT SPECIFICATIONS

SPECIAL FEATURES: Includes rejection tab feature
INTERRUPT RATING: 10 kAIC
TYPE: Type BQC 1-Inch CTL plug-on circuit breaker
WIRE SIZE: #14-4 AWG Cu/Al
CIRCUIT BREAKER TYPE: BQ
USED WITH: Type BR Loadcenters
MAIN CIRCUIT BREAKER: BQC
MOUNTING METHOD: Plug-on
VOLTAGE RATING: 120/240 V
TRIP TYPE: Common breaker trip
NUMBER OF POLES: Four-pole
